1.4G 50km IP MESH Ad-Hoc Network Drone 70Mbps UAV Video Transmitter

Brand Name : Suntor

Model Number : ST9633NS2

Certification : CE RoHS SGS FCC

Place of Origin : Shenzhen China

MOQ : 1 SET

Price : negotiation

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 1000SET/Month

Delivery Time : 3-7days

Packaging Details : Aircasing

Frequency : 1.4G(1427.9-1447.9MHz)

Range : 30-50km air to ground, 200-500meters ground to ground

Video Output : IP Camera Ethernet Only

Mode : PTP/PTMP

Latency : ≤8ms

RF Power : 1 Watts

Rate : 70mbps

Encrypted : AES128/256

Contact Now

IP MESH Ad-hoc Network Solution for Emergency Operations

1.4G 50km IP MESH Drone UAV Video Transmitter Ad-Hoc Network 70Mbps

Here download data sheet in pdf file

Specification of ST9633NS2.pdf

ST9633NS2 User Manual.pdf

SUNTOR module ST9633NS2 is the 30-50km Inspection Drones 1.4G UAV Video Link Drone Video Transmitter and robot and UAVs unmanned vehicles for drones manufacturer and emergency operations for government.

Product Application of IP MESH Ad-hoc Network Solution Drone UAV Video Transmitter:
1.4G 50km IP MESH Ad-Hoc Network Drone 70Mbps UAV Video Transmitter



Product Key Features of IP MESH Ad-hoc Network Solution Drone UAV Video Transmitter:

IP MESH drone wireless video transmitter UAVs Video Transmitter



Range: 200-500meters NLOS in ground to ground,

3-5km open area in ground to ground, ＞20km in air to ground.

Frequency: Regular L Band 1.4GHz(1427.9-1447.9MHz),

Customized 512~582MHz, 570~590MHz, 1240~1300MHz

Mode: BPSK/QPSK/16QAM/64QAM

Data Rate: 70Mbps

Latency: 8-20ms, Relink: 8s

Power: 1W

Receive Sensitivity: -93dBm@5MHz

MESH Node: ＞32

Encrypted: AES128/256

Waterproof: IP65

Bandwidth: 5.0/10.0/20.0MHz

Consumption: ≤24W

Power supply:24V(14V-36V)

Working temperature: -40℃～+75℃

Dimension:202x85x30mm

Device Weight:550g Battery:200g

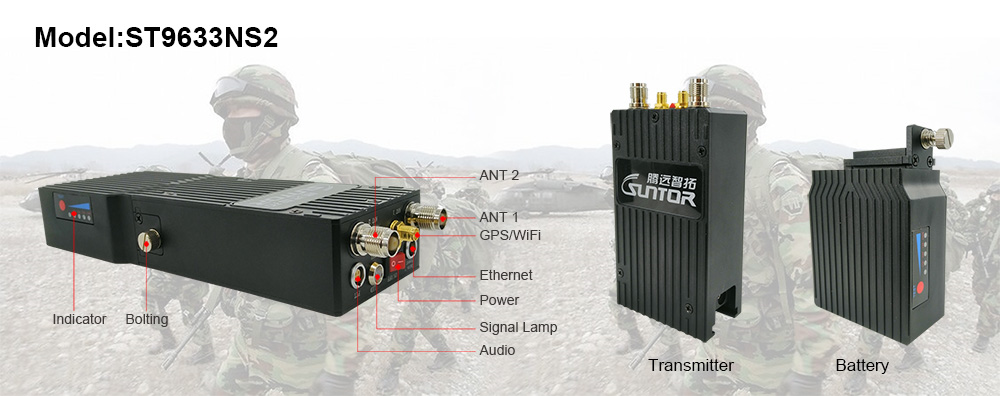

1.4G 50km IP MESH Ad-Hoc Network Drone 70Mbps UAV Video Transmitter


ST9633NS2 is professional designed for robot drones and handheld or manpack bodyworn outdoor mission for soliders and sniper.
It can be applied in air to ground 40-50km for point to point, mesh network up to 100km+, also 200-500meters in ground to ground by NLOS environment.

Product Components List:
1.TNC Antenna x 2pcs
2.Wifi Antenna x 1pcs
3.GPS Antenna x 1pcs
4.Ethernet Cable x 1pcs
5.Power Cable x 1pcs
6.Power Adapter x 1pcs


Device Warranty: One year since from the date of parcel received.
