TDD-COFDM High Definition Multimedia Interface Wireless HD video transmission for UAV and Drones , receiving in PC

TDD-COFDM High Definition Multimedia Interface Wireless HD video transmission for UAV and Drones, receiving in PC

Specs Sheet

User Manual

Introduction

ST5XHPT is 720p Full-HD digital video transmission system which including air unit and ground unit. ST5XHPT transmits the video, image, autopilot data and more information by the wireless communication mode. Both the transmitter and receiver are equipped with a omni antenna to get signal and achieve 5km communication distance. Also the transsmiter has a serial port, so besides the video, the serial port can connect with autopilot to transmit data. ST5XHPT digital video system features has low power consumption, long distance and low latency(15-30ms). ST5XHPT digital video transmission system is based on 2.4G frequency and with a maximum 5km range on the ground, more than 8km in the air. Latency is less than 15-30ms. The output power of ST5XHPT is 27dbm. The Receiver has High Definition Multimedia Interface output. This model send HD video and Data for 5km with very economy price. It is very suitable for low budget and short range.

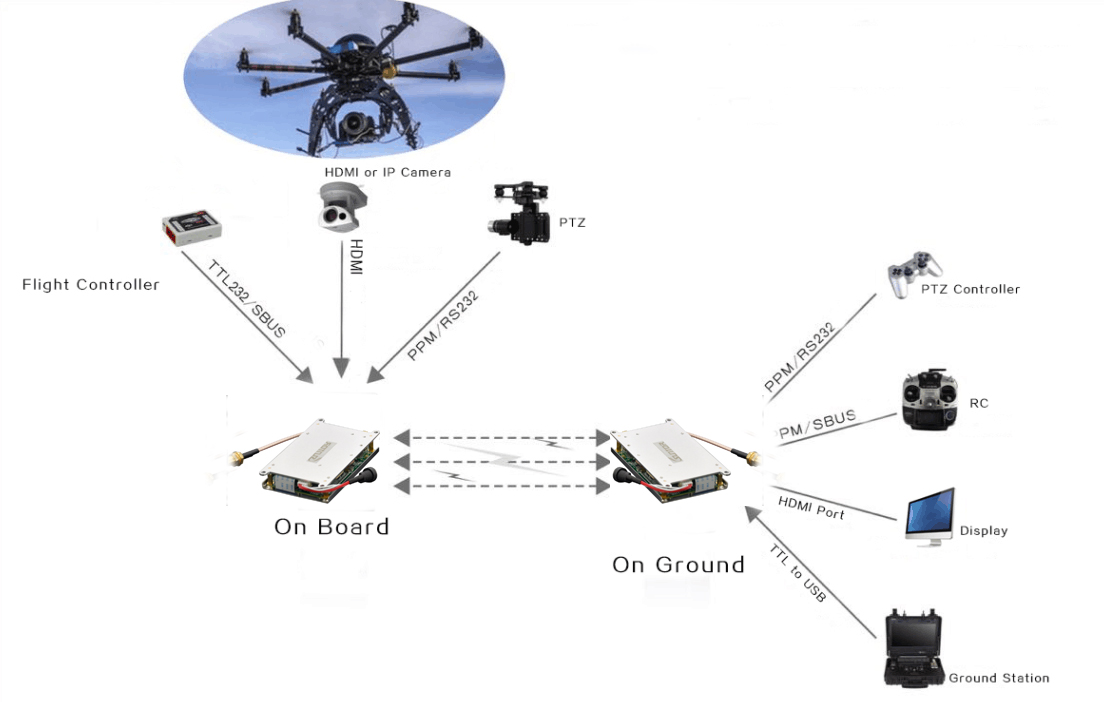

Diagram

Features

• Maximum Transmission Distance: 5KM on the ground,more than 8KM air to ground
• Video Resolution: 720p@60fps
• Output Power: 27dbm
• Sensitivity: -100dbm±4Mhz
• TX Antenna Gain: 5dBi
• RX Antenna Gain: 5Dbi
• Frequency: 2.402-2.482Ghz
• Latency: 15-30ms
• Video Input: High Definition Multimedia Interface
• Video Output: High Definition Multimedia Interface (for High Definition Multimedia Interface display devices)
• Working Temperature: -40~+85℃
• Transmitter working voltage: DC-12V/0.58A(DC7-18V)
• Receiver Working Voltage: DC12V/0.41A(DC7-18V)
• Weight(Transmitter): 48g
• Weight(Receiver): 48g

Your Purchase Include:

1. Transmitter in air*1

2. Receiver On ground *1

3. TX Antenna *1

4. RX Antenna*1

5. Power Cable*4

6. High Definition Multimedia Interface Cable *2

7. TTL Cable*2

8. Package Box*1
